Featured: Layout Planning
5,324㎡Full-floor layout for a tech manufacturer’s new plant
Manufacturers served
Industries served
Visual factory elements
Client satisfaction
Featured 01 — Layout Planning

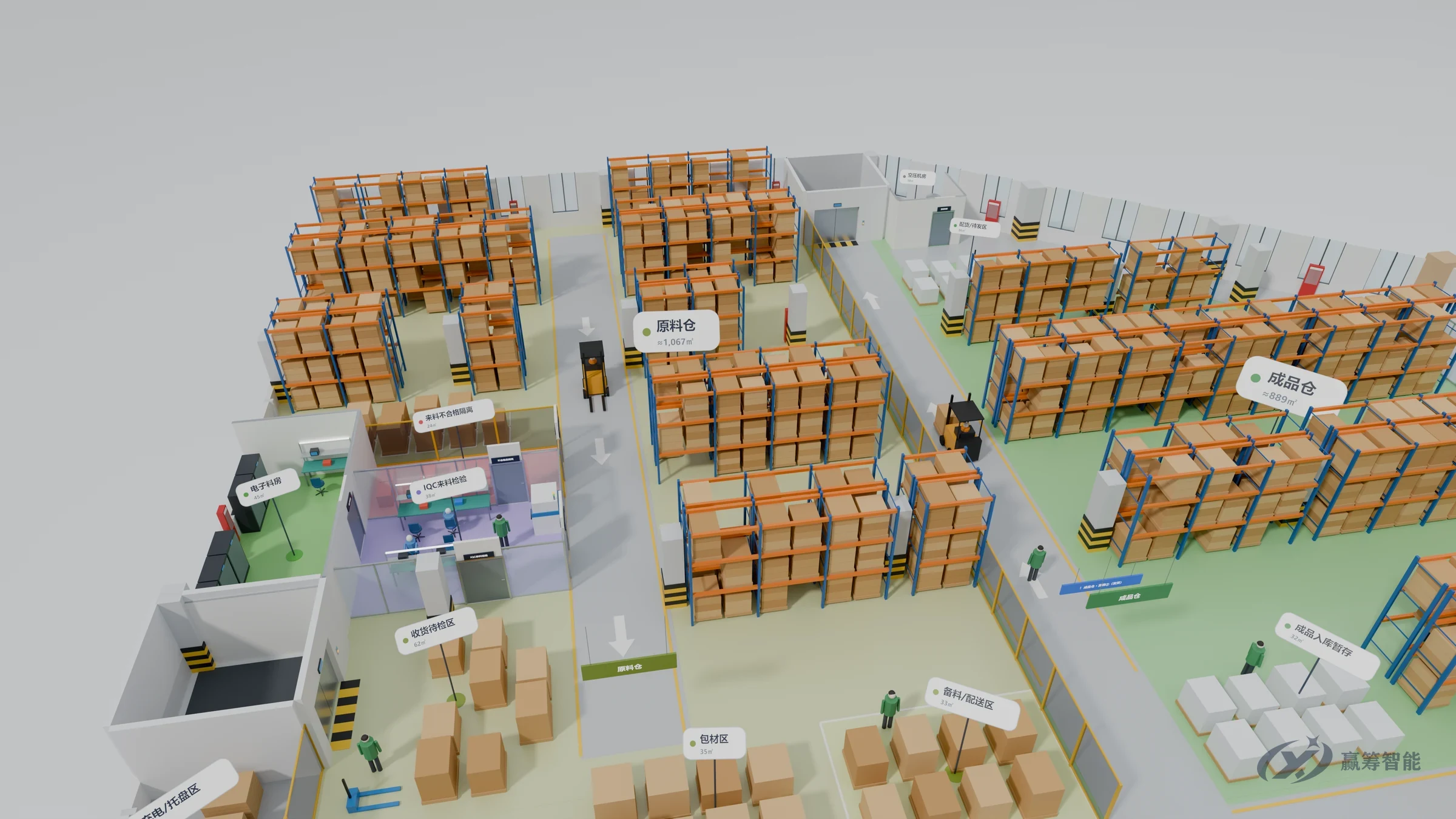

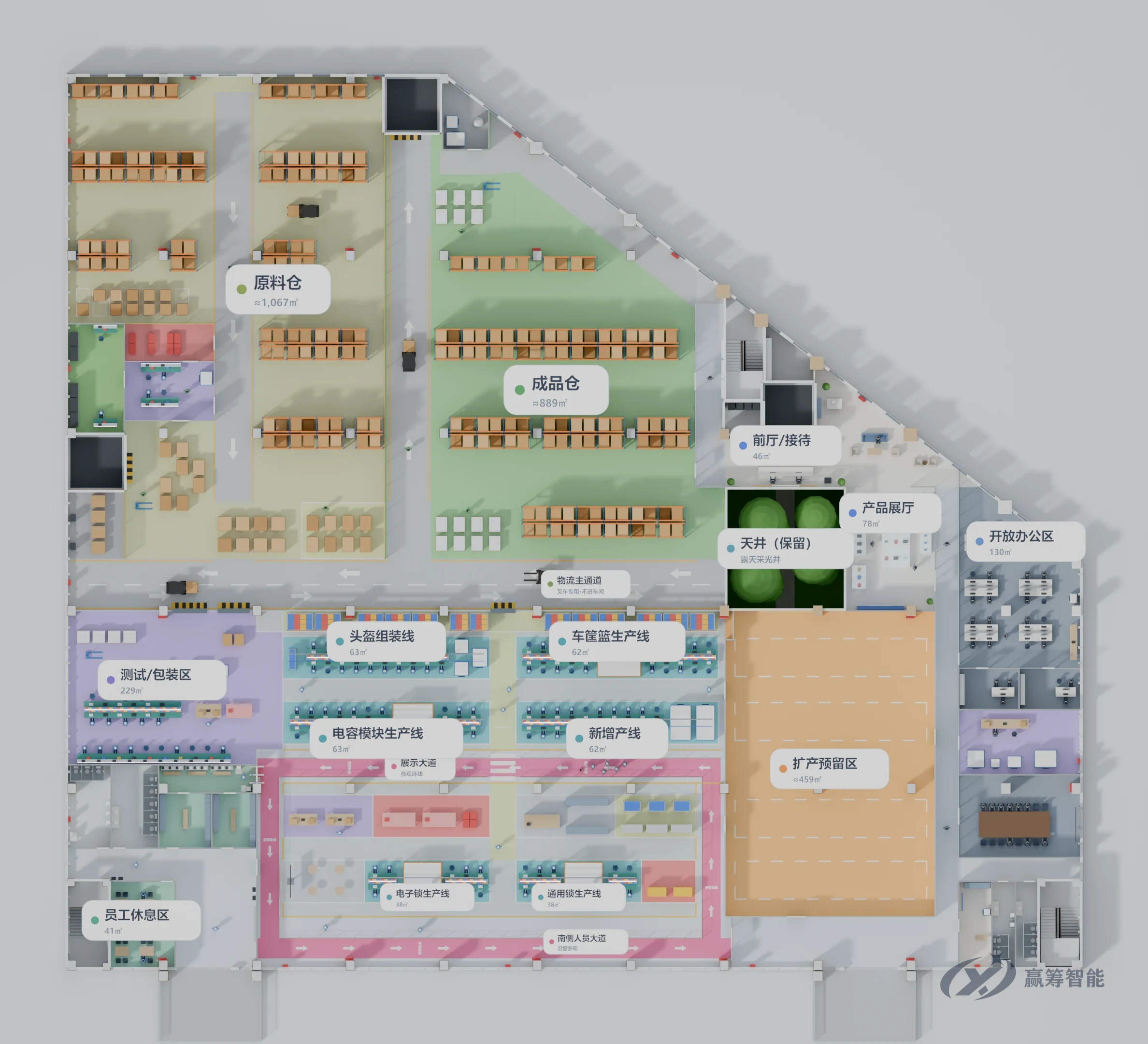

Full-floor aerial viewStorage north, workshop south, lobby and offices east
Plan view
Production floor
Reception lobby
+9View all 14
The top floor of the new building is a single open level of about 5,300 m², served only by freight elevators. There is no passenger elevator. It had to fit 6 production lines with test and packing, roughly 2,100 m² of storage, and a reception area, showroom, lab and offices. The client also wanted the visitor tour to run through the workshop, and an easier route in for staff starting their shift.
Online 3D Walkthrough
View the zoning of the whole floor from above, or switch to first person and follow the visitor route, opening doors, flap gates and roller shutters as you go. On a computer, move with the WASD keys; on a phone, use the on-screen joystick.
Featured 02 — Visual Factory

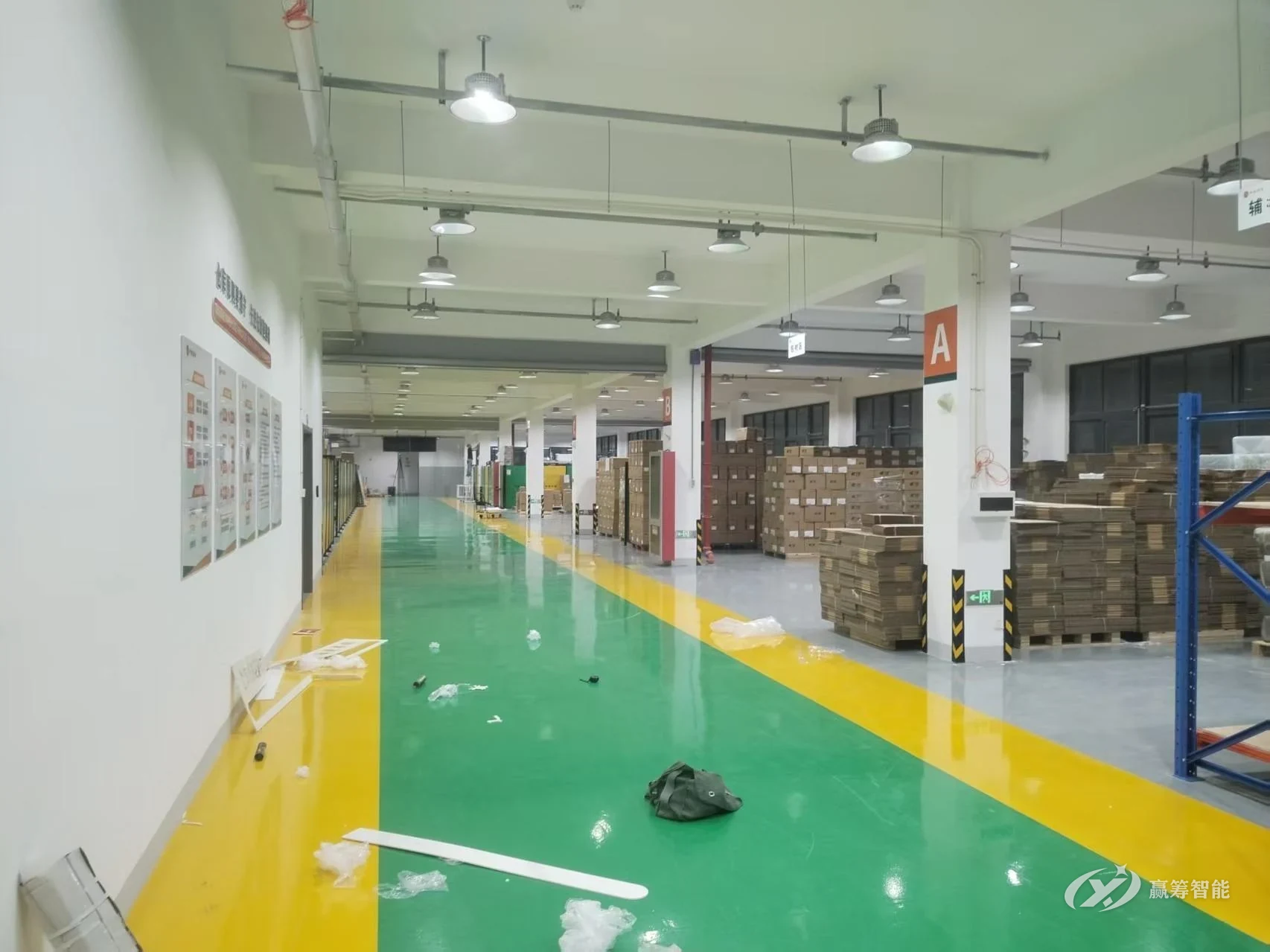

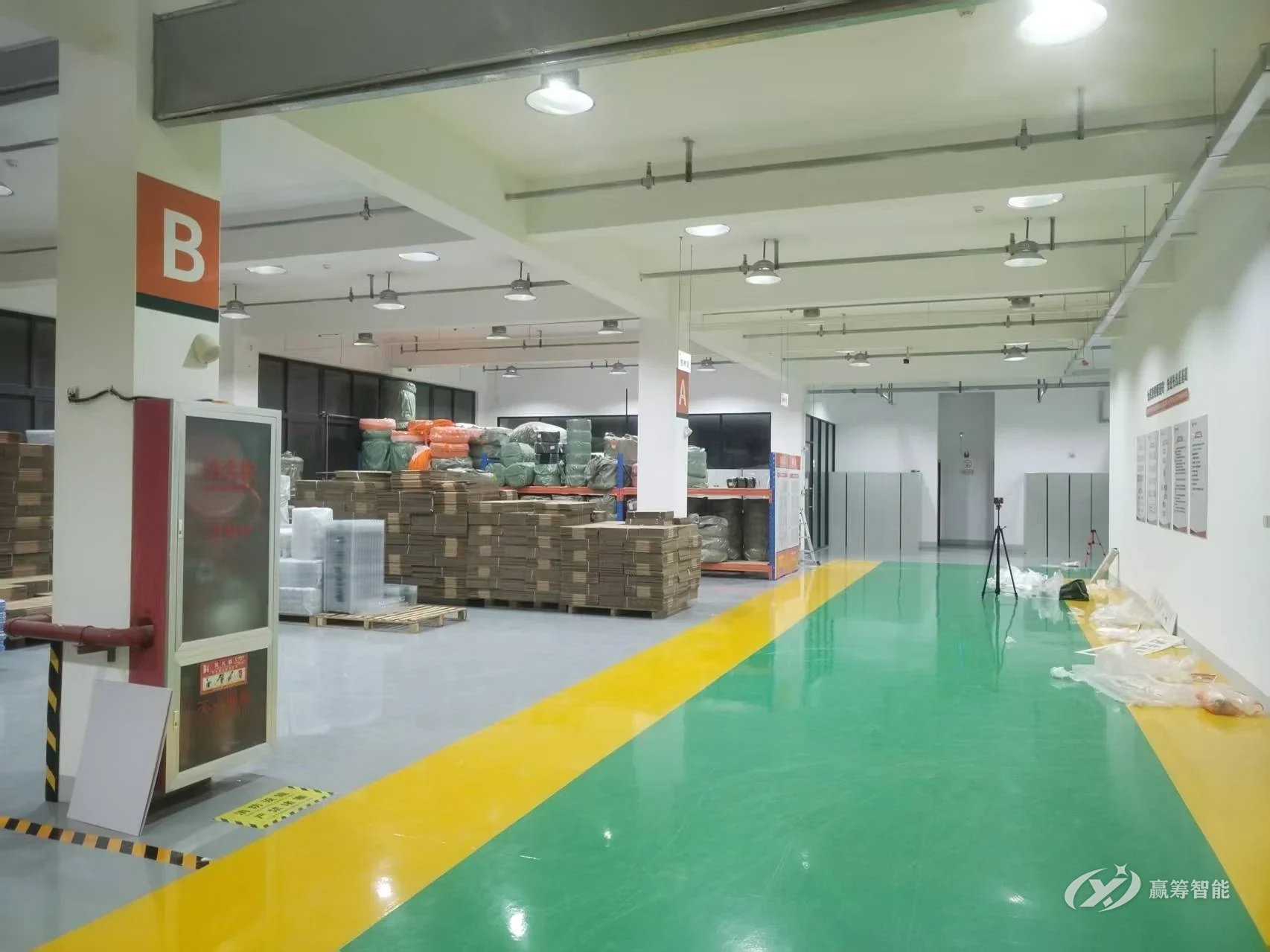

Main warehouse aisleColor-coded floors, aisle lines, zone numbers

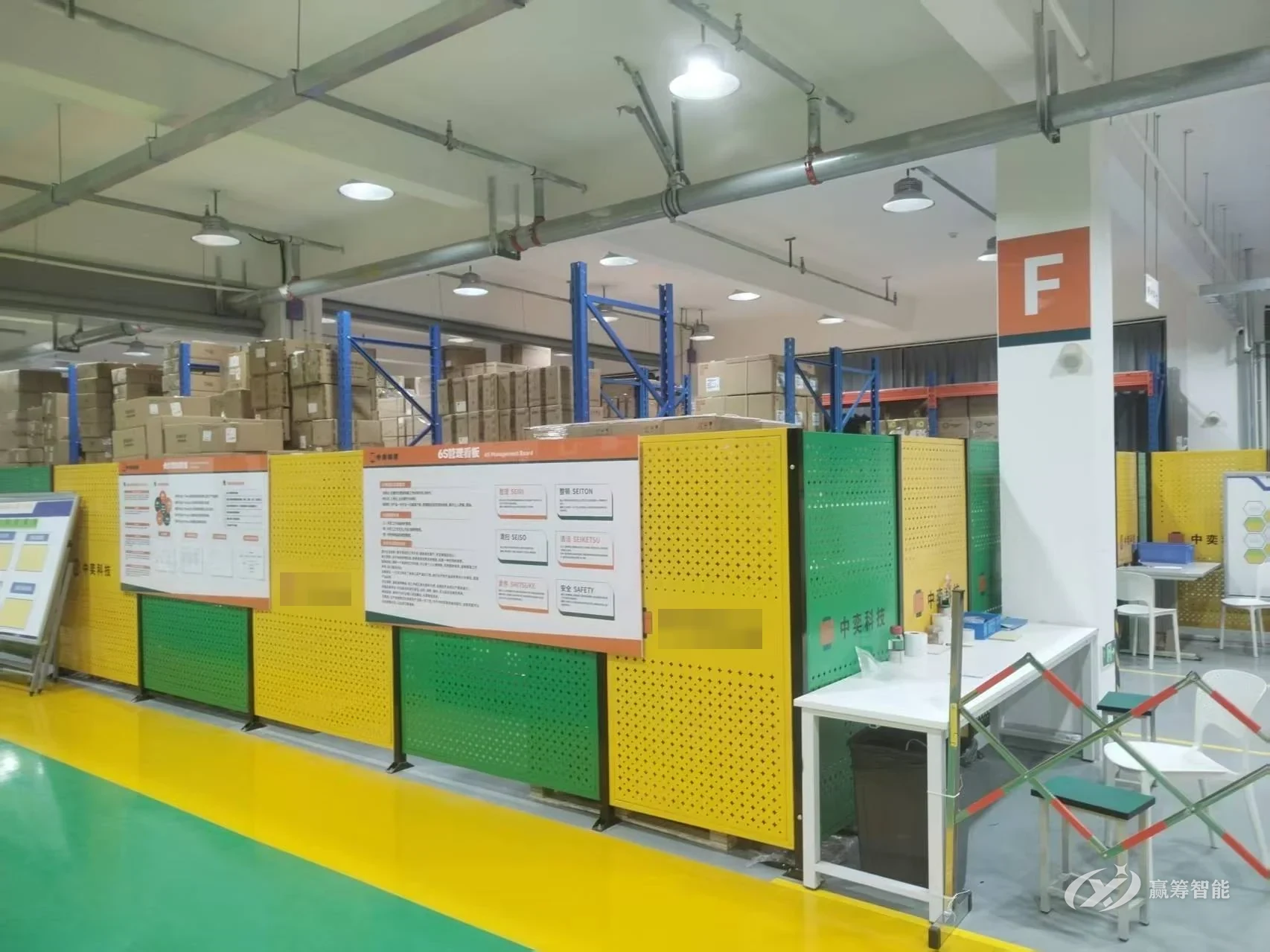

Warehouse zone boards
5S graphics on glass
Staff corridor welcome wall
+15View all 20 photos

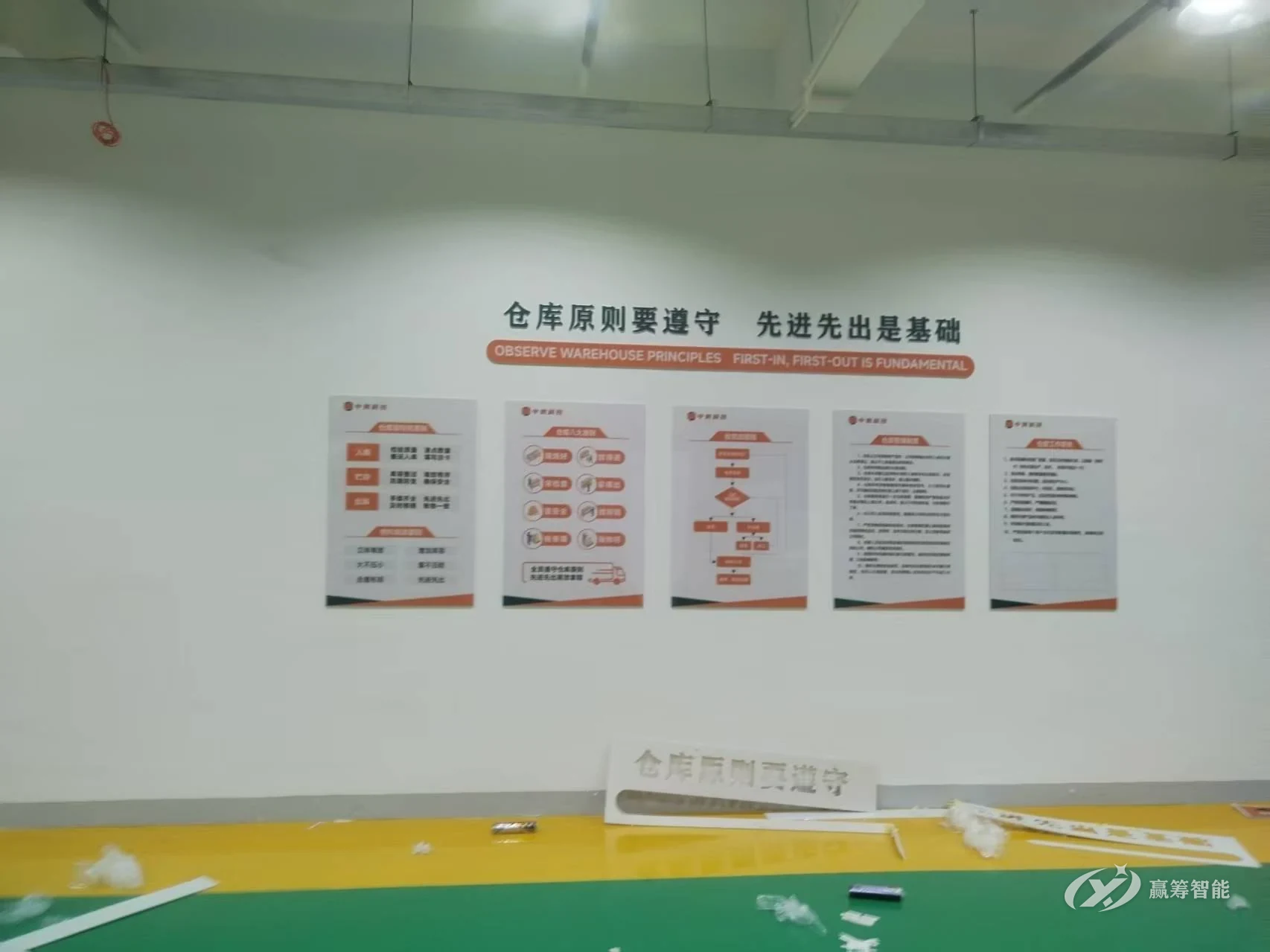

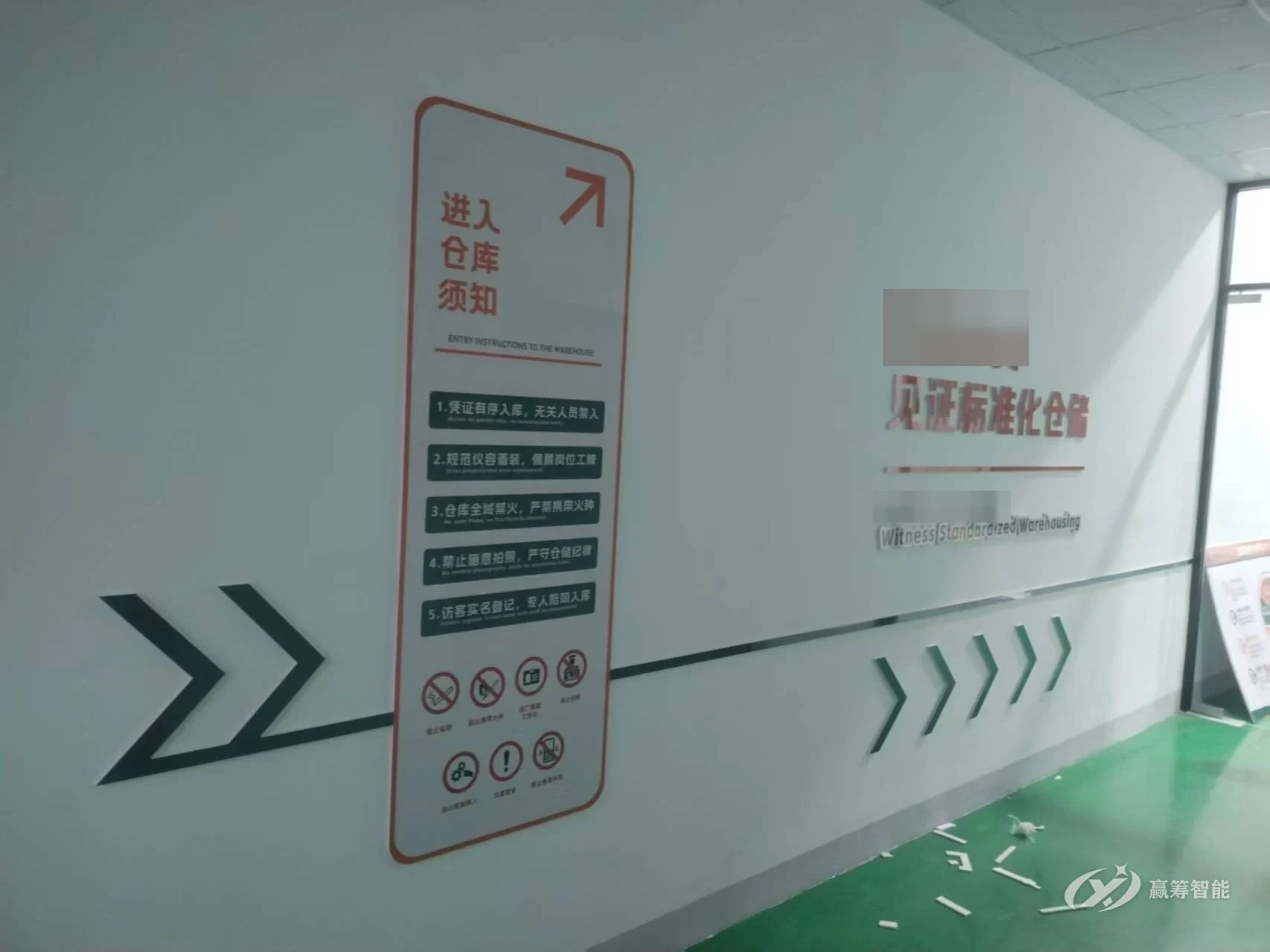

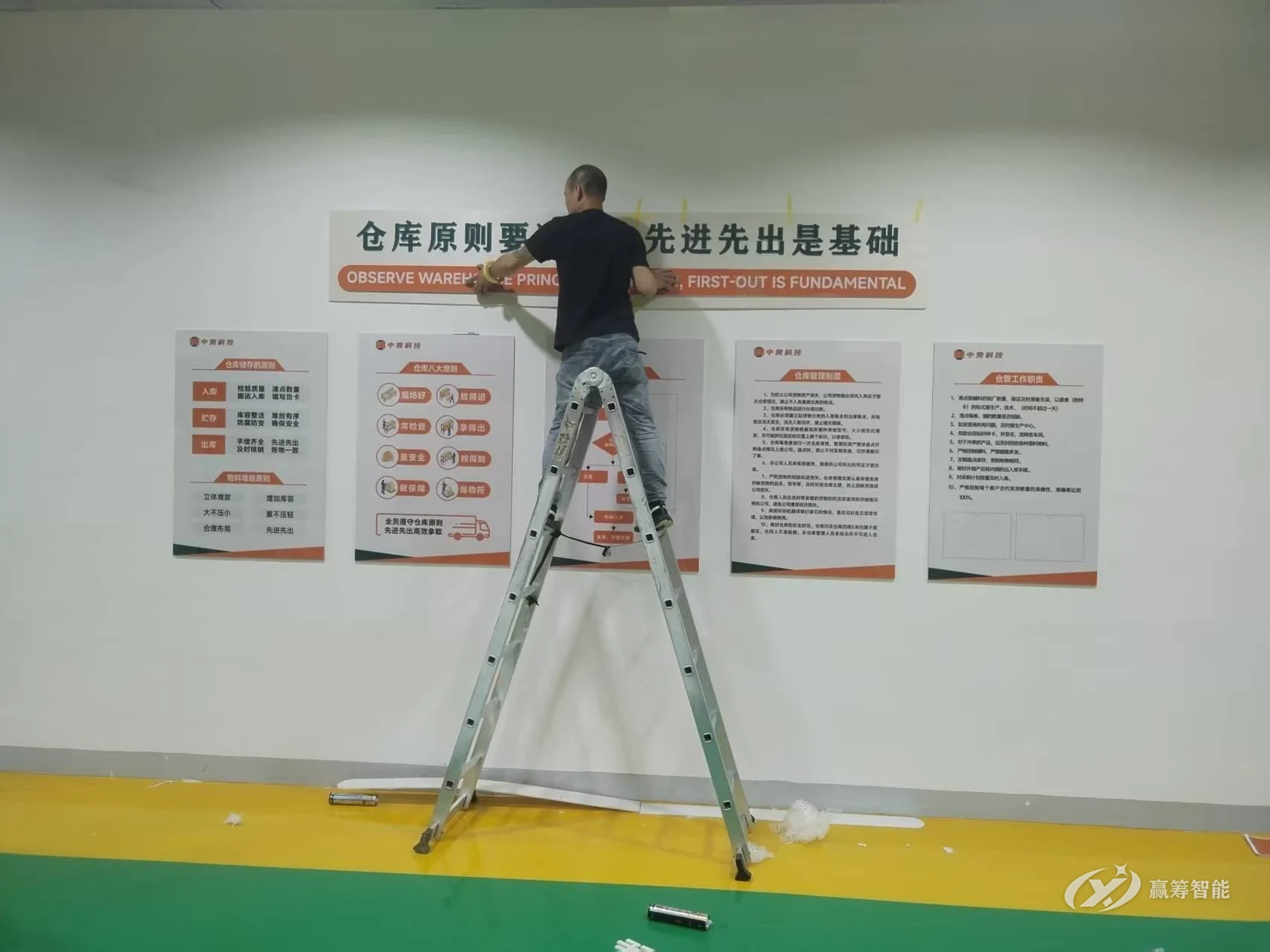

Green floors and yellow aisle lines define the zones, and columns are numbered A–G. Rack location labels, load-capacity signs, a warehouse principles wall and posted entry rules mean there is a clear rule for finding and putting away every item.

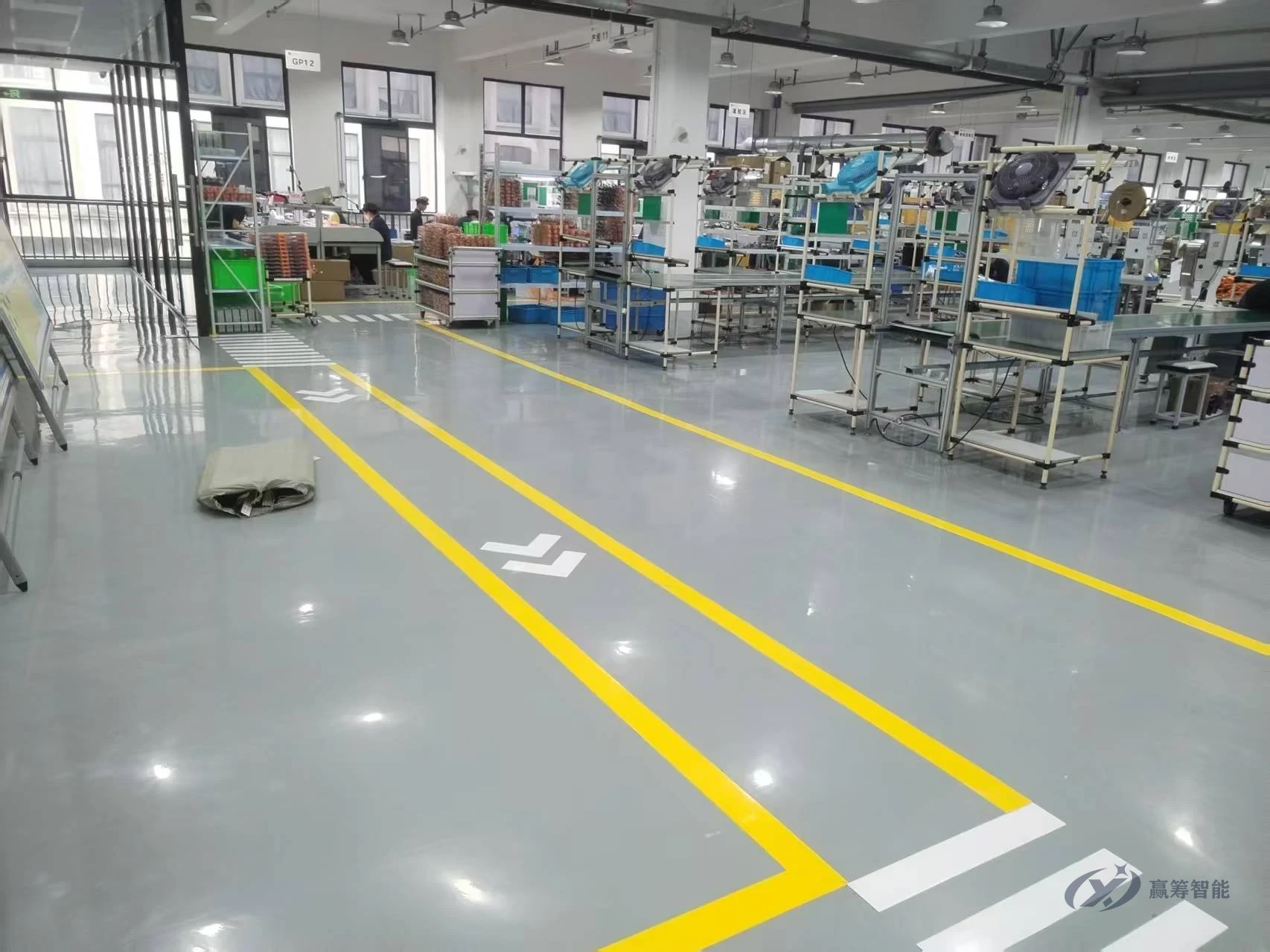

Aisle lines and crosswalks separate people from vehicles. 5S graphics on the glass partitions, a morning huddle and training area, and management boards put the plant’s expectations where staff see them every day.
A welcome wall in the staff corridor, core-values and culture walls in the meeting room and corridors, and floor wayfinding in the elevator lobby show visiting customers how well the company is run the moment they walk in.

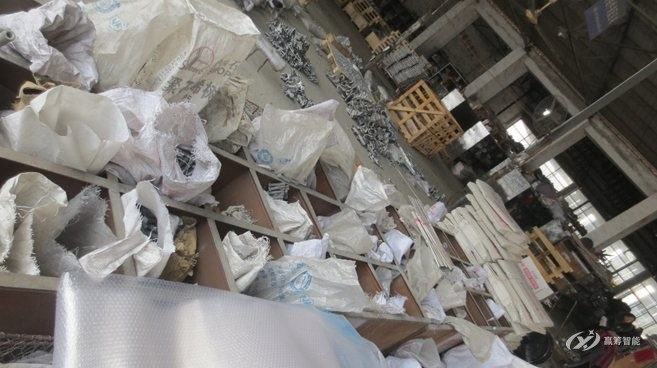

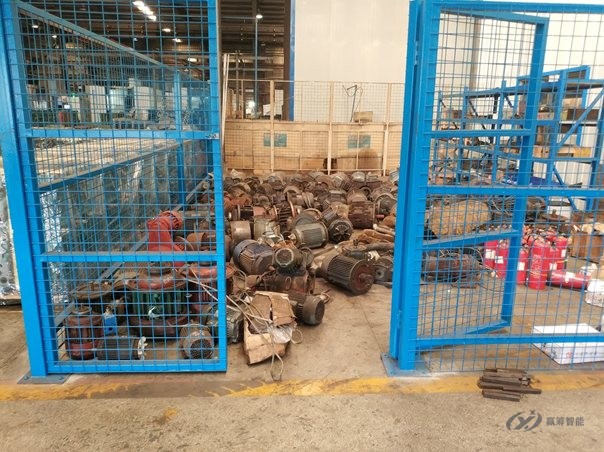

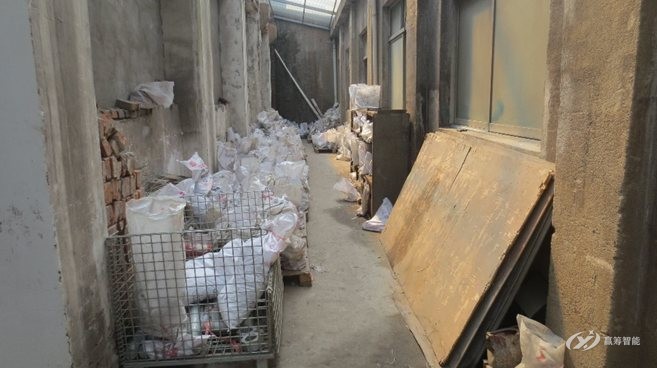

Before & After
Same spot, before and after. Sorting, fixed locations, labels and floor marking: this is what 5S and visual management look like on the shop floor.
Project Gallery
Click a card to open the gallery. Photos from client sites are shown only to illustrate our work, and company details on certificates have been redacted.
14 images

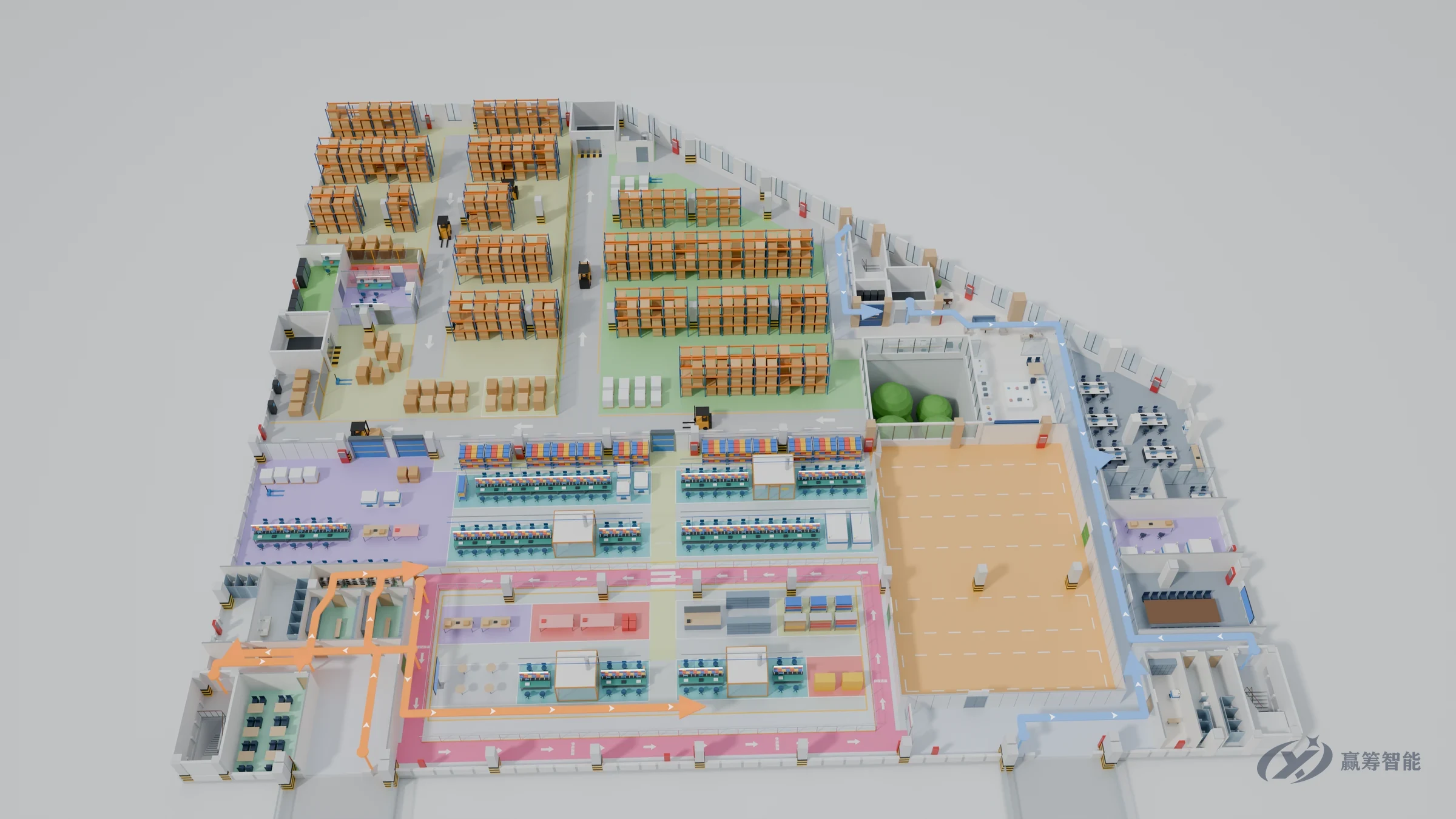

Aerial zoning views, three flow diagrams and eye-level renderings, plus an online 3D walkthrough
7 images

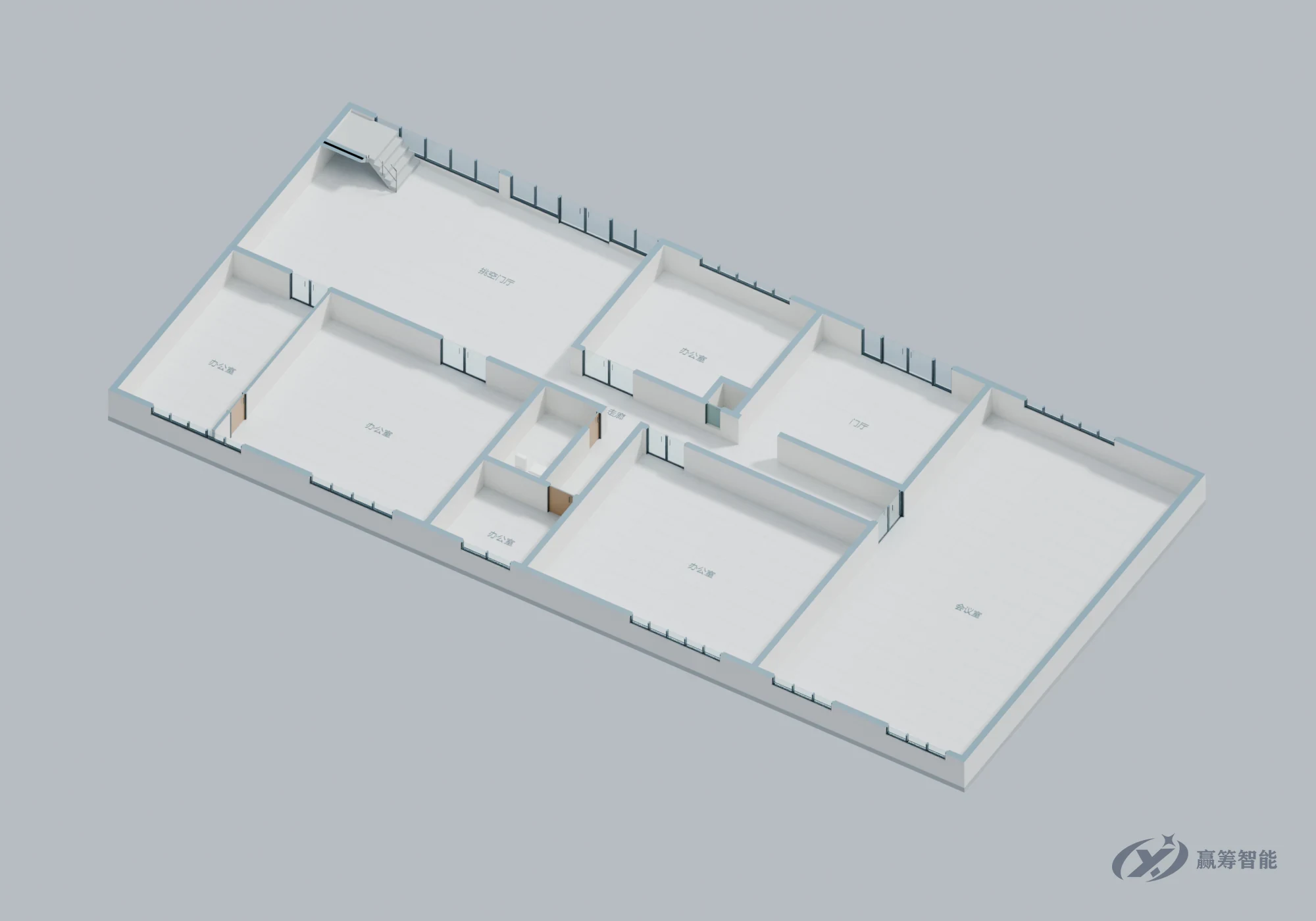

Site master plan, workshop equipment layout and a 3D model of the office building
20 images
Warehouse zones, workshop aisles, office culture walls and floor wayfinding, all in one rollout
9 images
Measuring, setting out and taping, with consultants and the client’s team working side by side
8 images
Separate lanes for people and vehicles, crosswalks and directional arrows for clear, orderly aisles
7 images
No-parking fire lanes, pedestrian crosswalks and entrance and exit markings
5 images
Location numbers, rack boards, floor zones and FIFO
7 images
Showroom, lobby, company history wall and team wall
4 images
Equipment zone lines, aisle marking, pipe and valve labels
7 images
Site entrance, gatehouse, building facades and workshop visitor walkway
3 images
Kickoff, on-site workshops and phased rollout
Certificates for IATF 16949, ISO 9001/14001/45001, GJB 9001C and more
4 images
In-house training on management systems, quality tools and team leadership
